Consulting

Consulting


Design Software:
- Microwave Office for linear and nonlinear design including EM-analysis.

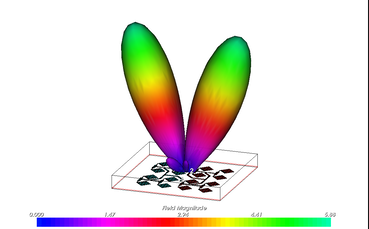

- Ansoft HFSS for 3D EM-analysis.

- Altium Designer for PCB design.

- Mechanical Design Software.


Test Capabilities:
- Agilent 8722ES Vector Network Analyzer (40 GHz).

- Agilent 8564EC Spectrum Analyzer (40 GHz).

- In-house developed Phase Noise Measurement System.

- LabVIEW

- Temperature chamber.


Production facilities for prototypes and small series quantities:

- Automatic pick and place machine

- Manual pick and place equipment.

- Reflow soldering oven.

- Wedgebonder for development work with open chips, i.e. MMIC.
